6" Cobalt Click Square Retrofit Reflector with Square Aperture, 750lm / 10W, 3000K, White
Image may not reflect selected features

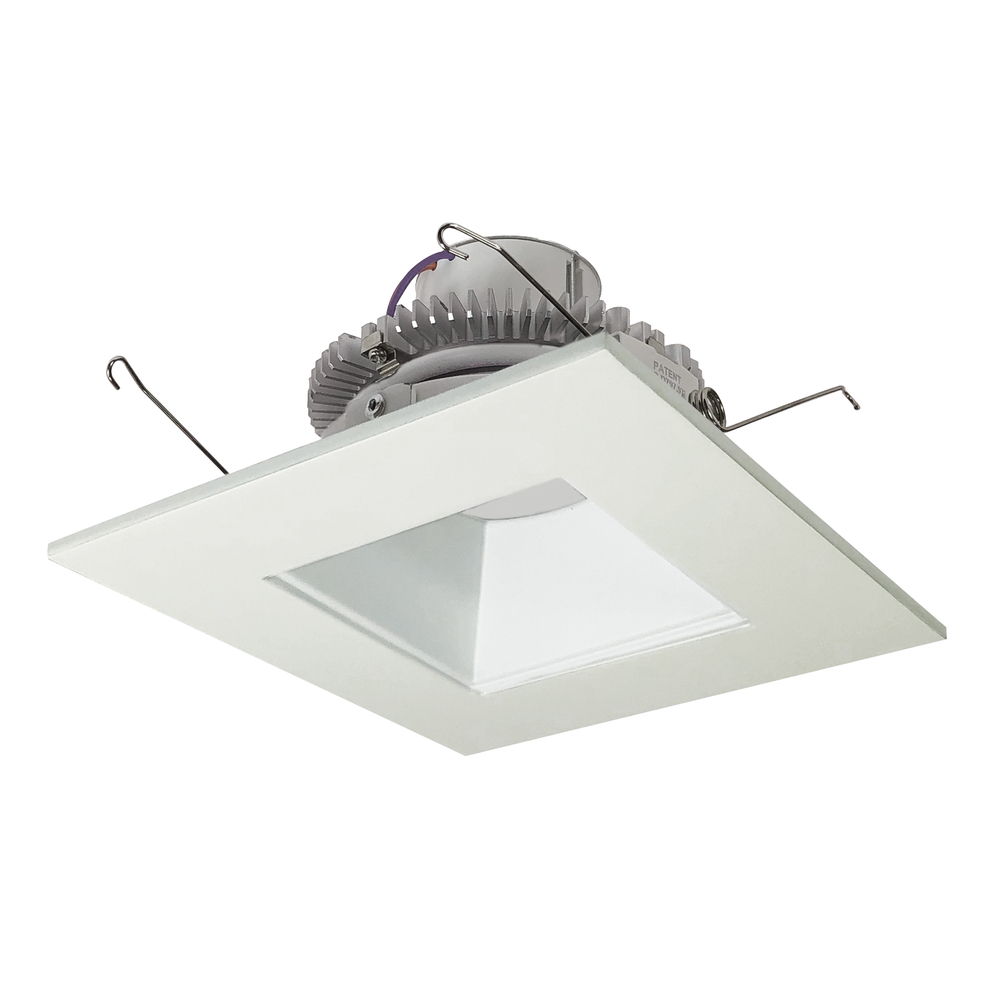

6" Cobalt Click Square Retrofit Reflector with Square Aperture, 750lm / 10W, 3000K, White (17YY36)
6" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module.
Input Voltage: 120-277VAC
Lumens / Wattage: 750lm / 10W
Color Temperature: 3000K
Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /6W suffix)
Finish: White Reflector / White Flange
Included: Medium Base Retrofit Adapter
Listing: cULus classified for wet locations
Emergency: Luminaire includes connections for Nora LED dedicated housing with emergency battery (/EM)
Downloads
Spec Sheet
Sales Sheet
Instruction Sheet
Product Specification
Item #
17YY36
Dimensions
Height: 4.25"
Width: 7.38"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24
Category
Recessed
Product Line
LE87
Est. Shipping Wt.
4
Length
7.375
Lumens / Light Output
750lm
Ship Carton Height
5.5
Ship Carton Length
9
Ship Carton Width
9
Weight
1.85
CCT
3000K
CEC Database
Y
CEC Item Number
NLCBC2-6********/A
CEC Substitute Item
NLCBC2-65635WW/A
Contains Battery
N
Country of Origin
CHN
CRI
90
DLC Listed
No
Master Box H
7
Master Box L
27
Master Box Qty
6
Master Box W
18
Master Box Wt.
15
Product Family
6" Cobalt Click Retrofit
Safety Listing
cULus
Wattage
10W


Other Details:
  • 2.15
Finish
Additional options that would change other selections
CEC Substitute Item
Additional options that would change other selections
Lumens / Light Output
Additional options that would change other selections
Wattage
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
145
30
/ / 1
($145.30 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer may be Out Of Stock. Call 435.586.5502 for more information
