5" LED Recessed Trim for 5" Housing (P84-LED)

Part Number: 1VN07

5" LED Recessed Trim for 5" Housing (P84-LED)

$48.10

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 34420 items available.

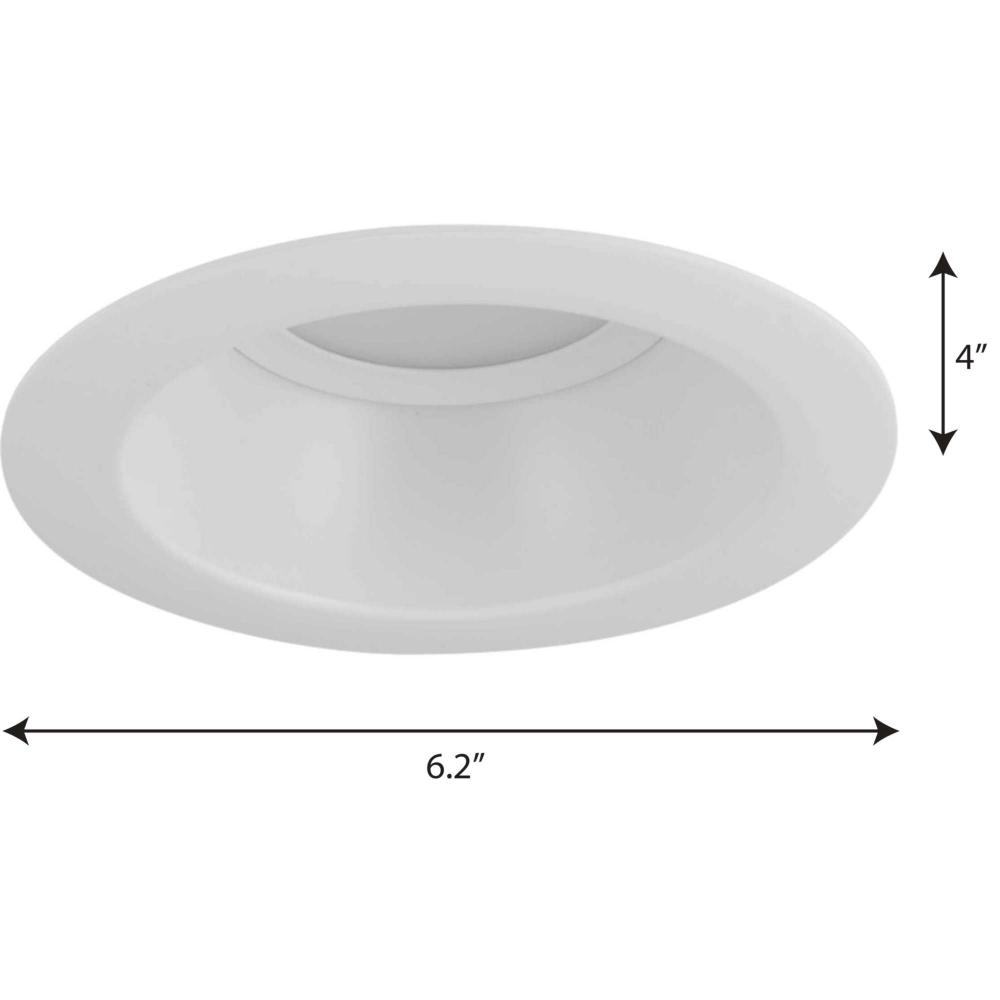

Dimensions

Height: 4.00"

Width: 6.34"

Length: 6.34"

Info & Guides

Included Items

Bulbs: 10 Watt LED x 1

Finish: Satin White

Option: Wet Rated

Glass: White

Shade: ...

Convertible Fixture Includes Both Mounts: FALSE

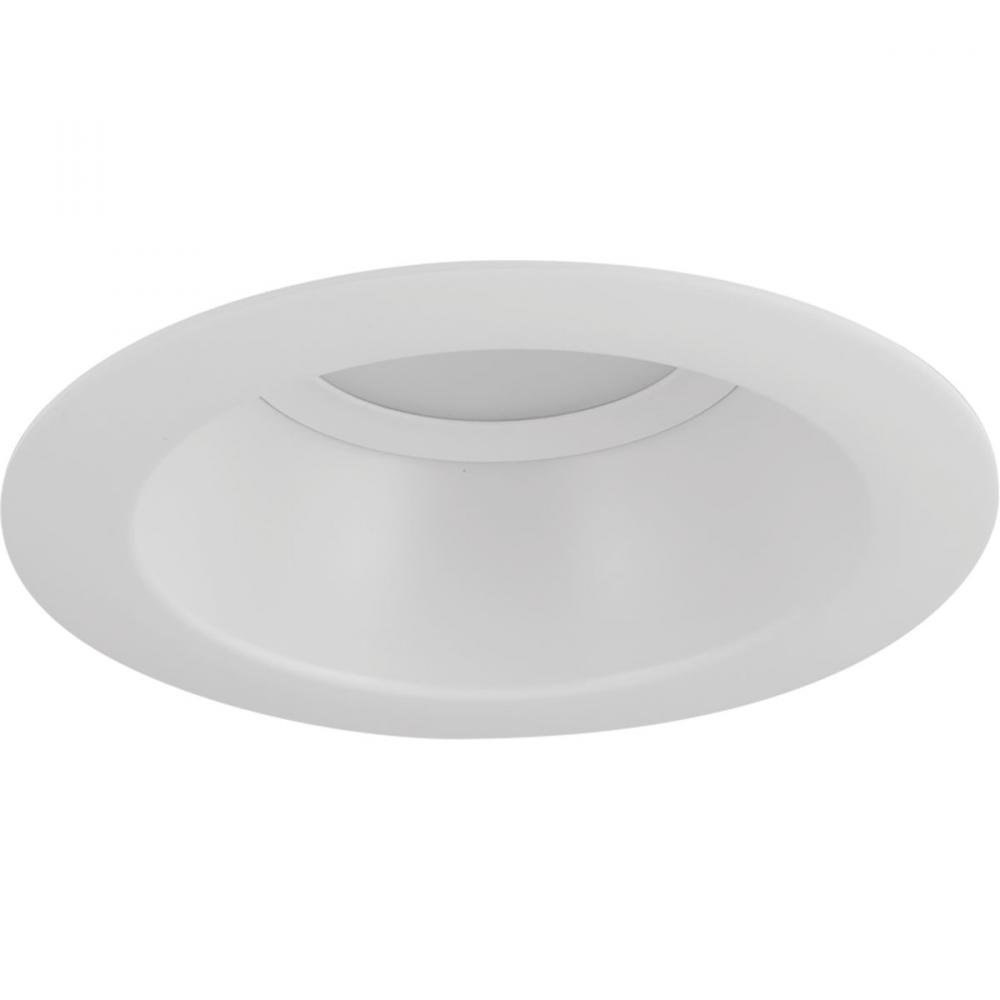

Product Overview

The 5" P8061 is ideal for use in both new construction as well as remodel/retrofit. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75 percent energy savings. The P8061 is equipped with both Edison base adapter and quick link connector allowing easy installation in many standard incandescent recessed housings. White finish.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Style:

Traditional

Option:

Energy Efficient

Energy Star

Title 24

Wet Rated

LED

Voltage:

100-120

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Recessed-Trim

Finish:

Satin White

Option:

Energy Efficient

Energy Star

Title 24

Wet Rated

Family:

LED Recessed

Glass:

White

Voltage:

120

Number of Bulbs:

1 Bulbs

Bulb Hours:

50000

Bulb Type:

LED

Introduction Date:

01/16/2017

Kelvin:

3000

Keyword(s):

flush mount;ceiling fixture;ceiling light;led light;energy efficient

Length:

6.34

Lumens / Light Output:

713

Material:

Steel

Ship Carton Height:

7.50

Ship Carton Length:

7.50

Ship Carton Width:

4.37

Ship Weight:

0.90

Special Features:

Satin White finish.;Diffused polycarbonate lens controls direct glare from the LEDs.;Easy "Push and Twist" installation with (3) friction spring clips.;Can be installed in most competitors 5" recessed housings.;Dimmable to 10% with many Triac/F

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

1.35

Wire Included:

6 in

Americans with Disabilities Act:

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

Certified Listed Location:

Wet Location Listed

Construction Material Main Part:

Construction

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

Dark Sky:

Design Series:

Dimming Compatability:

Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153P;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Leviton_Trimatron 6681

Dimming Protocol:

Triac/Forward Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

Yes

Finish Type:

Painted

Frequency Rating:

60 Hz

Glass Shape:

Lens

Grounded Convenience Outlet included:

JA8:

2016

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

Lens Shade Material:

Polycarbonate

Lumens per Watt:

71.00

Mount Location:

Ceiling Flush/Recessed

MTO:

Operating Temperature Celcius Max:

30 °C

Prop 65:

View

Prop 65 Description:

View

Safety Rating:

cCSAus

Starting Temperature Minimum:

-30 °C

Sub Brand:

Progress LED

Title 20:

Title 24:

Yes

Weight of Fixture Exceeds NEC Limits:

Width Diameter:

6.2 in dia.
