Product Overview

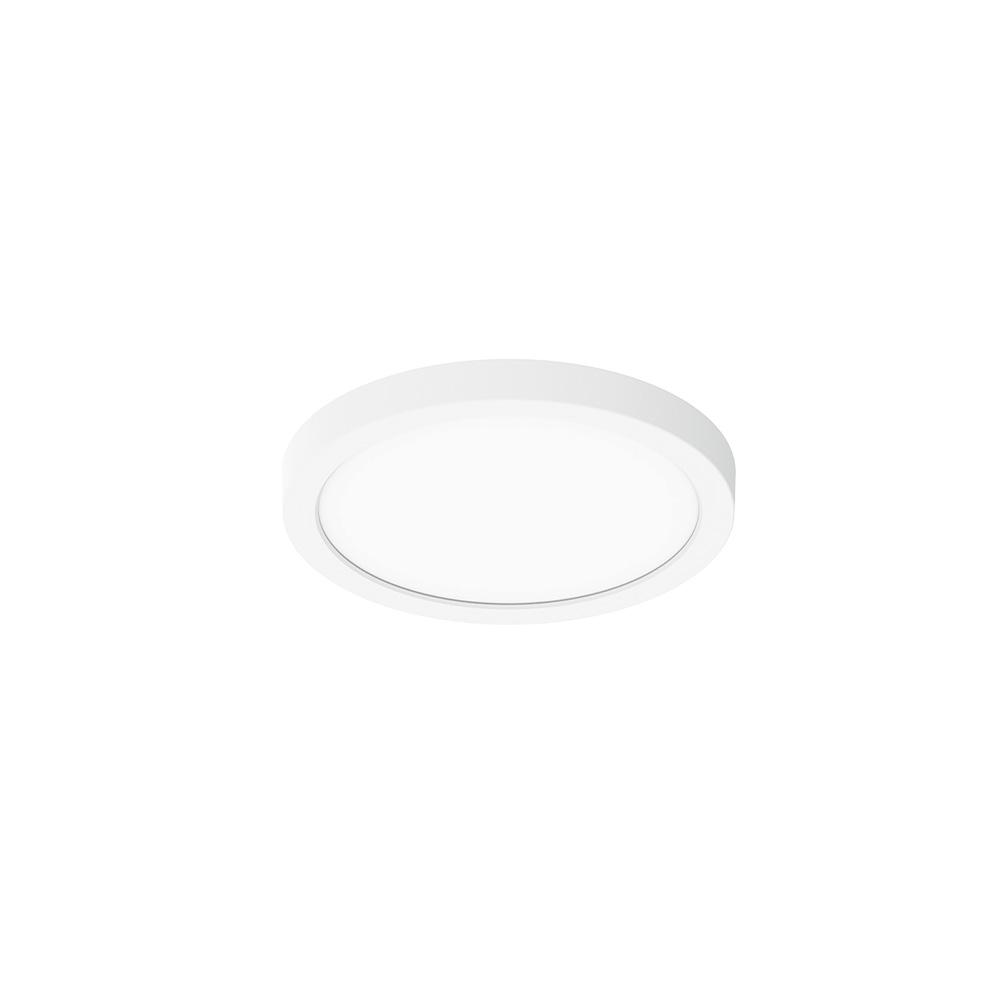

6" ELO LED luminaires are a thin 5/8" surface mounted luminaire two tunable switches; Selectable Lumens allows the end user
to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires mounts easily over a standard or fire rated junction boxes.
Input Voltage: 120-277V
Lumens / Wattage: Selectable Lumens (950lm / 8W; 1250lm / 11W; 1550lm / 15W)
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
Listing: cETLus Listed for Wet Locations

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Option:

Title 24

Refinement Options

Category:

Surface

Product Line:

LE88

Est. Shipping Wt.:

2

Length:

7

Lumens / Light Output:

Selectable Lumens (950lm / 1250lm / 1550lm)

Ship Carton Height:

2.75

Ship Carton Length:

7.75

Ship Carton Width:

7.375

Weight:

.7

CCT:

Selectable CCT (27K / 30K / 35K / 40K / 50K)

CEC Database:

Y

CEC Item Number:

NELOSW-6RTWMPW

CEC Substitute Item:

NELO-6RTWMPW

Contains Battery:

N

Country of Origin:

MYS

CRI:

90

DLC Listed:

No

Master Box H:

9

Master Box L:

16

Master Box Qty:

12

Master Box W:

16

Master Box Wt.:

12

Product Family:

6" ELO

Safety Listing:

cETLus

Wattage:

Selectable Wattage (8W / 11W / 15W)

.8
