5" LED Square Recessed trim
Image may not reflect selected features

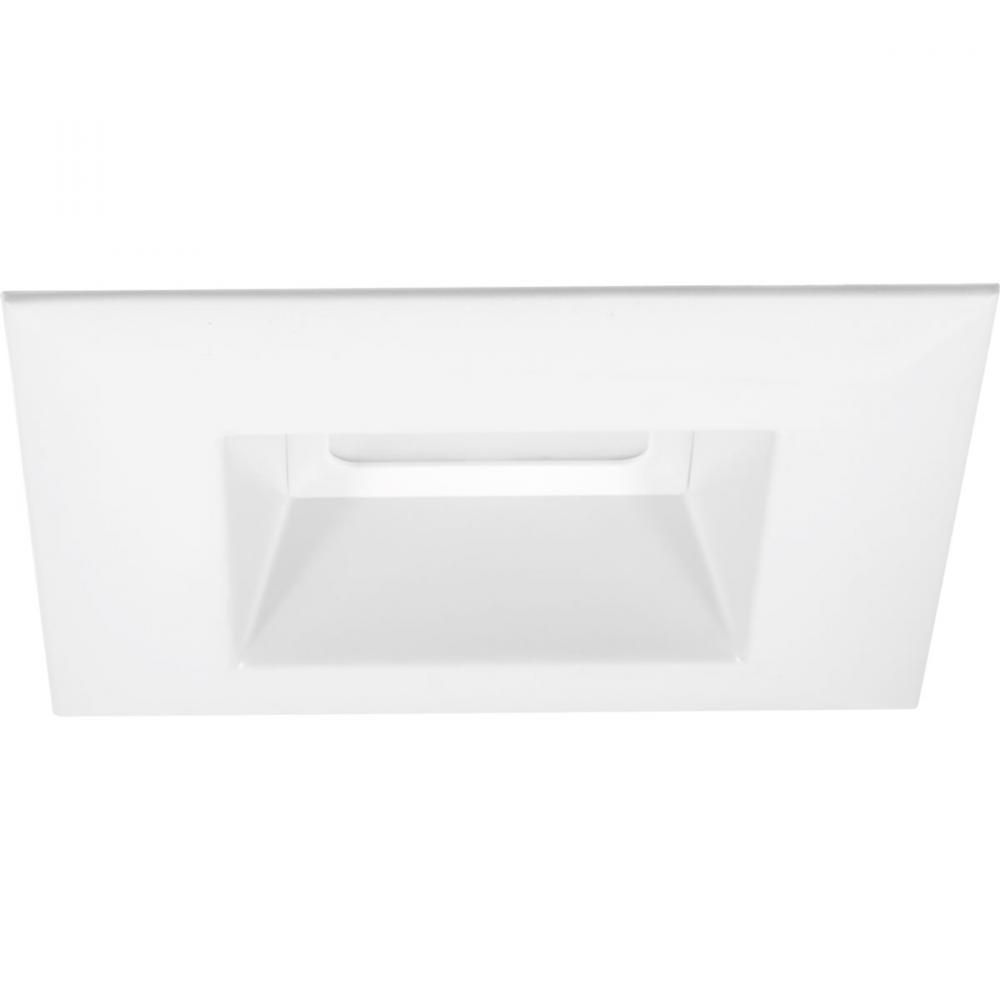

5" LED Square Recessed trim (AJ4X2)
The P8161 is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75% energy savings. The P8161 is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings.
Downloads
View Warranty Sheet
View Specification Sheet
Product Specification
Item #
AJ4X2
Dimensions
Height: 0.31"
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Style
Traditional
Option
Energy Efficient , Energy Star , Title 24 , Wet Rated , LED
Mount Type
Flush Mount
Location Rating
Wet Rated
Category
Recessed-Trim
Family
LED Retrofit Square
Voltage
120 V
Number Of Bulbs
1 Bulbs
Additional Info
Spec Sheet click here , Warranty Info click here , Country of Origin- China
Bulb Hours
50000
Bulb Type
LED
Introduction Date
06/01/2017
Kelvin
3000
Keyword(s)
white;5 inch led square retrofit;white;solid state;led;recessed;recessed light;recessed light kit;recessed trim;trim;recessed housing;housing;recessed light trim;retrofit trim;led trim;led recessed trim
Lumens / Light Output
694
Material
Aluminum Diecast Housing - Construction
Max Height
4
Ship Carton Height
7.370
Ship Carton Length
7.870
Ship Carton Width
5.120
Ship Weight
1.130
Special Features
White Finish.;Diffused Polycarbonate Lens Controls Direct Glare From The Leds;Easy "Push And Twist" Installation With (3) Friction Spring Clips;Can Be Installed In Most 5" Round Recessed Housings;Dimmable To 10% With Many Triac/Forward Phase D
Warranty
5 Year Warranty
Weight
1.04
Color
White
CRI
90+
Dimming Compatability
Lutron NTEVL-300;Lutron AYLV-600P;Leviton 6672
Dimming Protocol
Triac/Forward Phase
Dimming Range
10%
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
LensShade Material
Polycarbonate
Listed
cCSAus
Mount Location
Ceiling Flush/Recessed
Operating Temprature
30º C
Overall Length With
Overall Ht.
Finish
Additional options that would change other selections
Glass
Additional options that would change other selections
Included Items
Bulbs: (1) x 9 Watt LED
